IE3 High Efficiency
Premium efficiency class 3 rating reduces energy consumption and running costs versus older IE1/IE2 motors — critical for high-runtime applications like pumps and fans.
Electrical Equipment Supply
Three Phase Induction Motors
High-efficiency IE3 three-phase induction motors for industrial, mining, and manufacturing applications. Robust cast-iron frames, IP55 weatherproof protection, and continuous S1 duty ratings built for the Zambian operating environment.
What We Supply
YE3 Series High-Efficiency Induction Motors
The YE3 series is a premium IE3 (Efficiency Class 3) three-phase squirrel-cage induction motor manufactured to GB/T 28575-2020 standard by Ningbo Biote Mechanical Electrical Co., Ltd. — a CCC and CE certified manufacturer.
With IP55 ingress protection, a robust cast-iron frame, and Class F insulation, these motors are engineered for continuous heavy-duty operation in the demanding conditions typical of Zambian mining, water, and industrial sites.

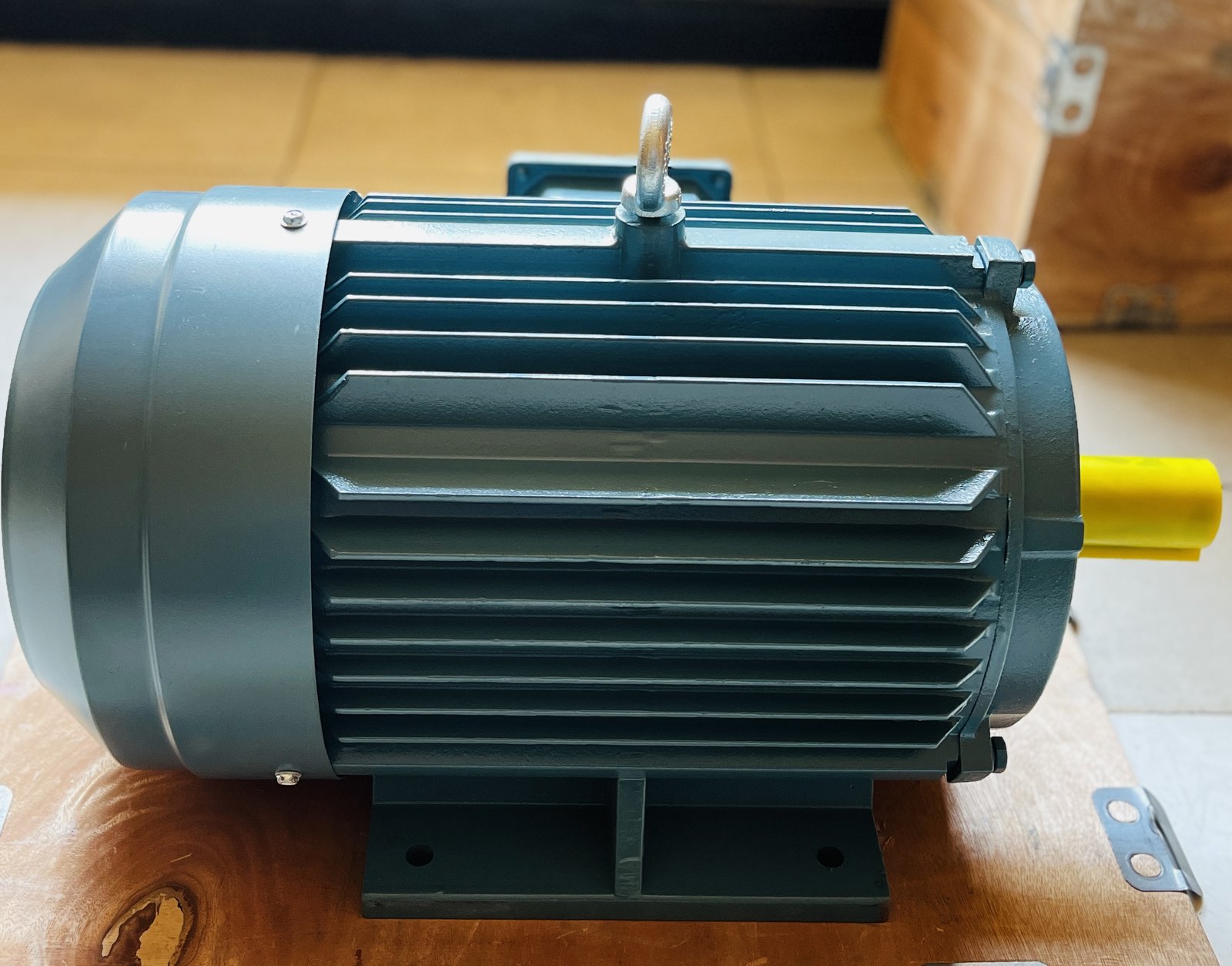

We stock and supply across a range of power ratings. The unit shown is the YE3-160M-6 (7.5 kW) — contact us for availability in other sizes.
IE3 High Efficiency
IP55 Protection
Class F Insulation
Continuous Duty S1
CCC & CE Certified
Cast Iron Frame
GB/T 28575-2020

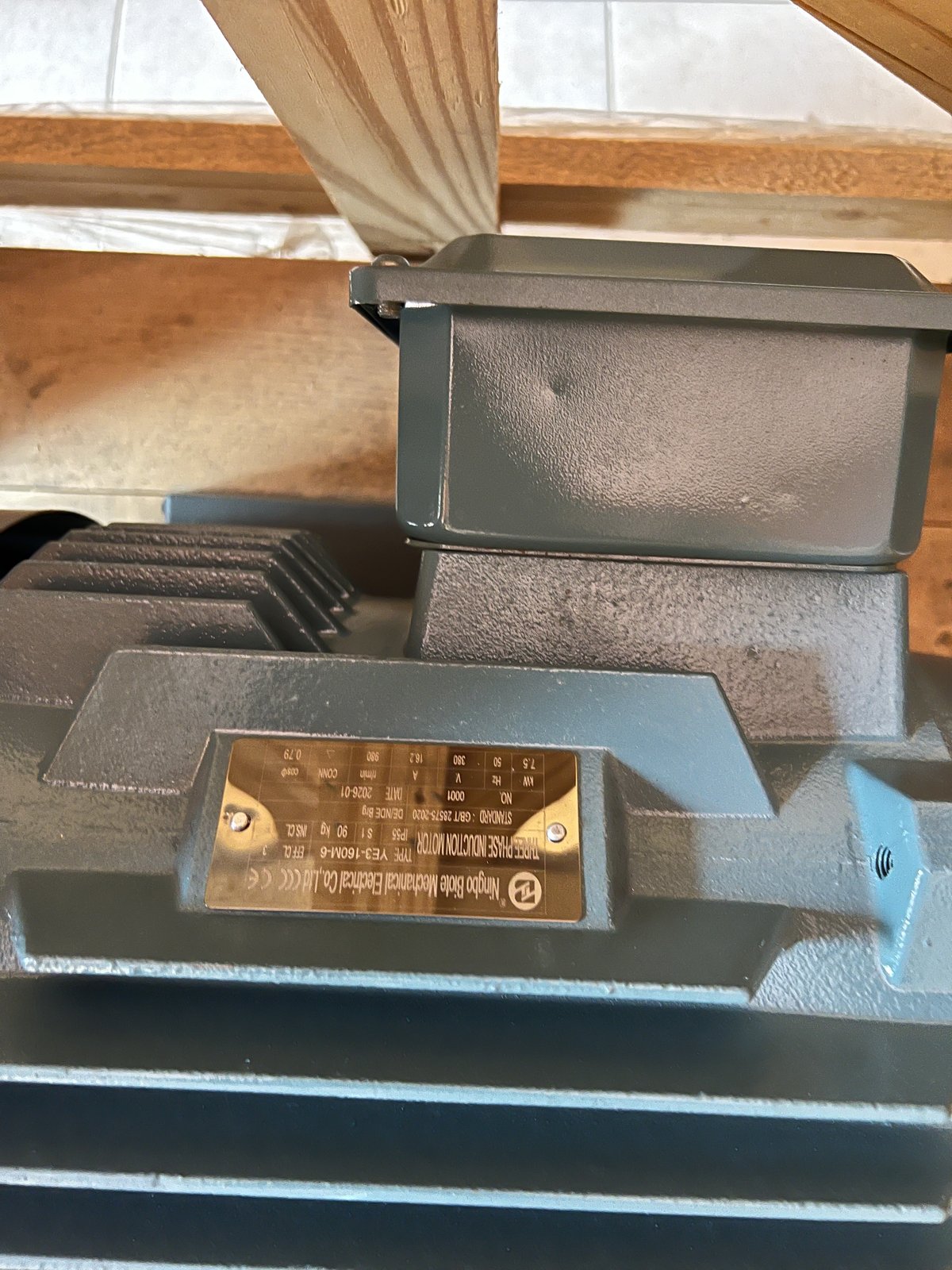

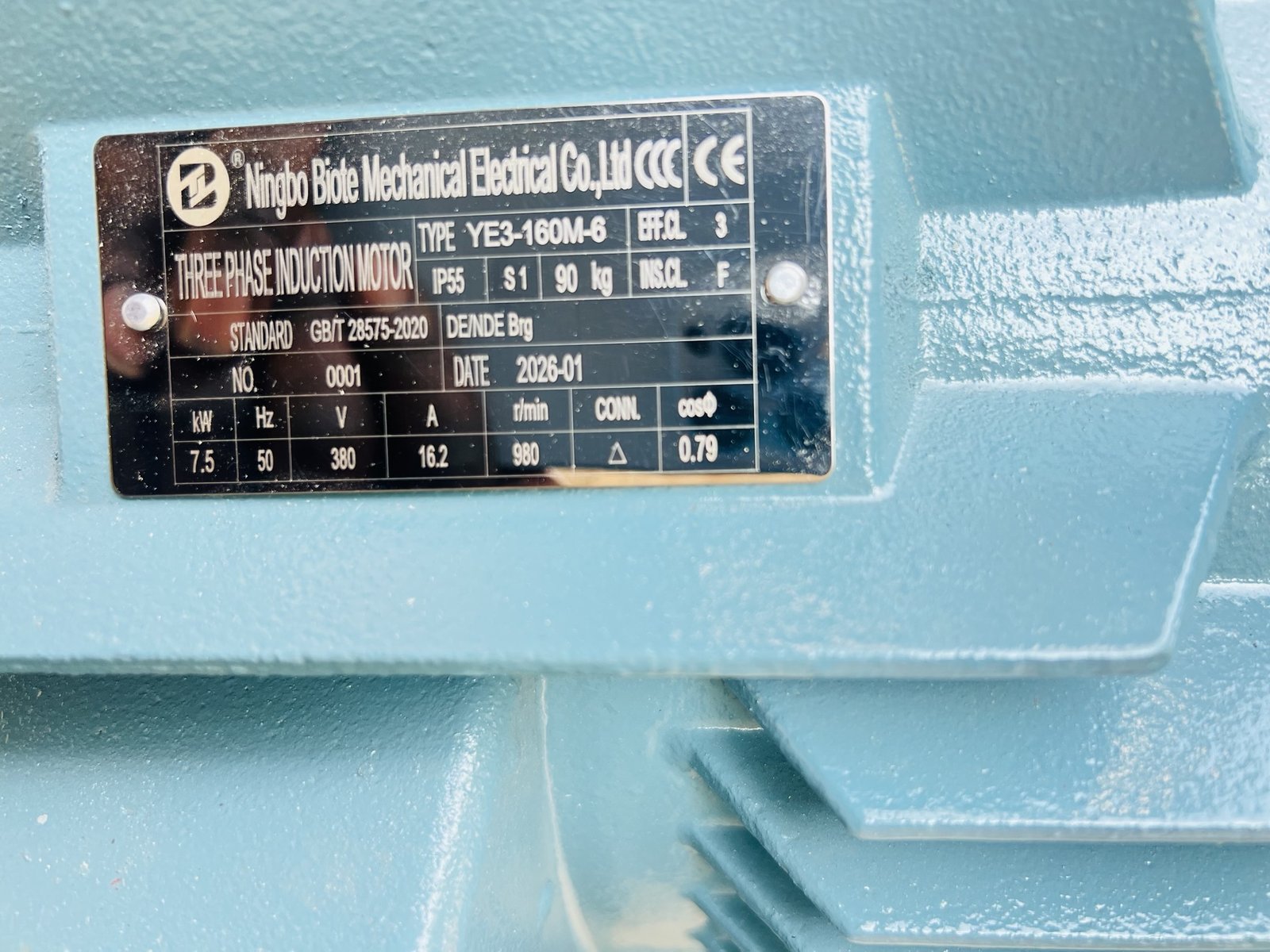

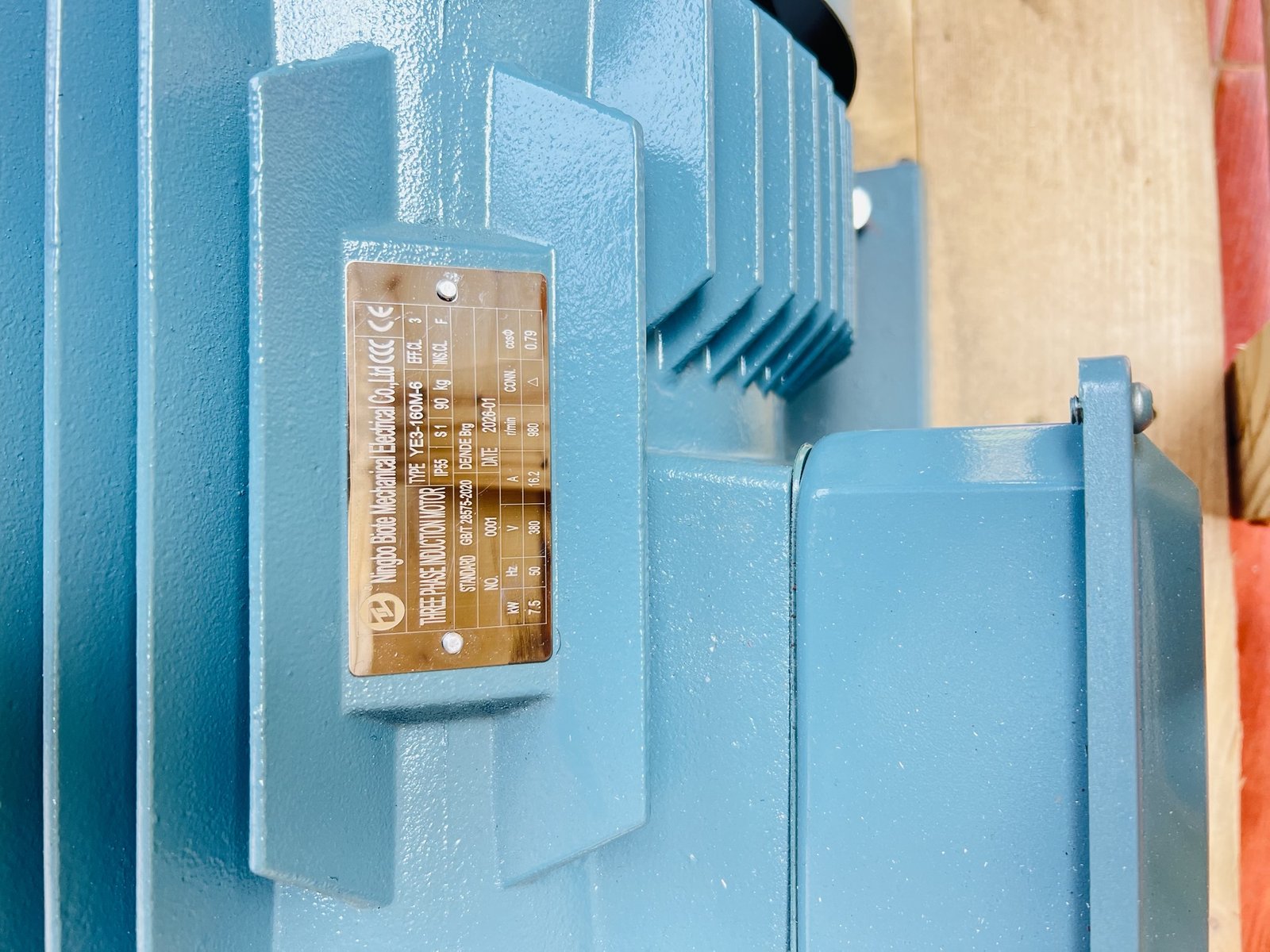

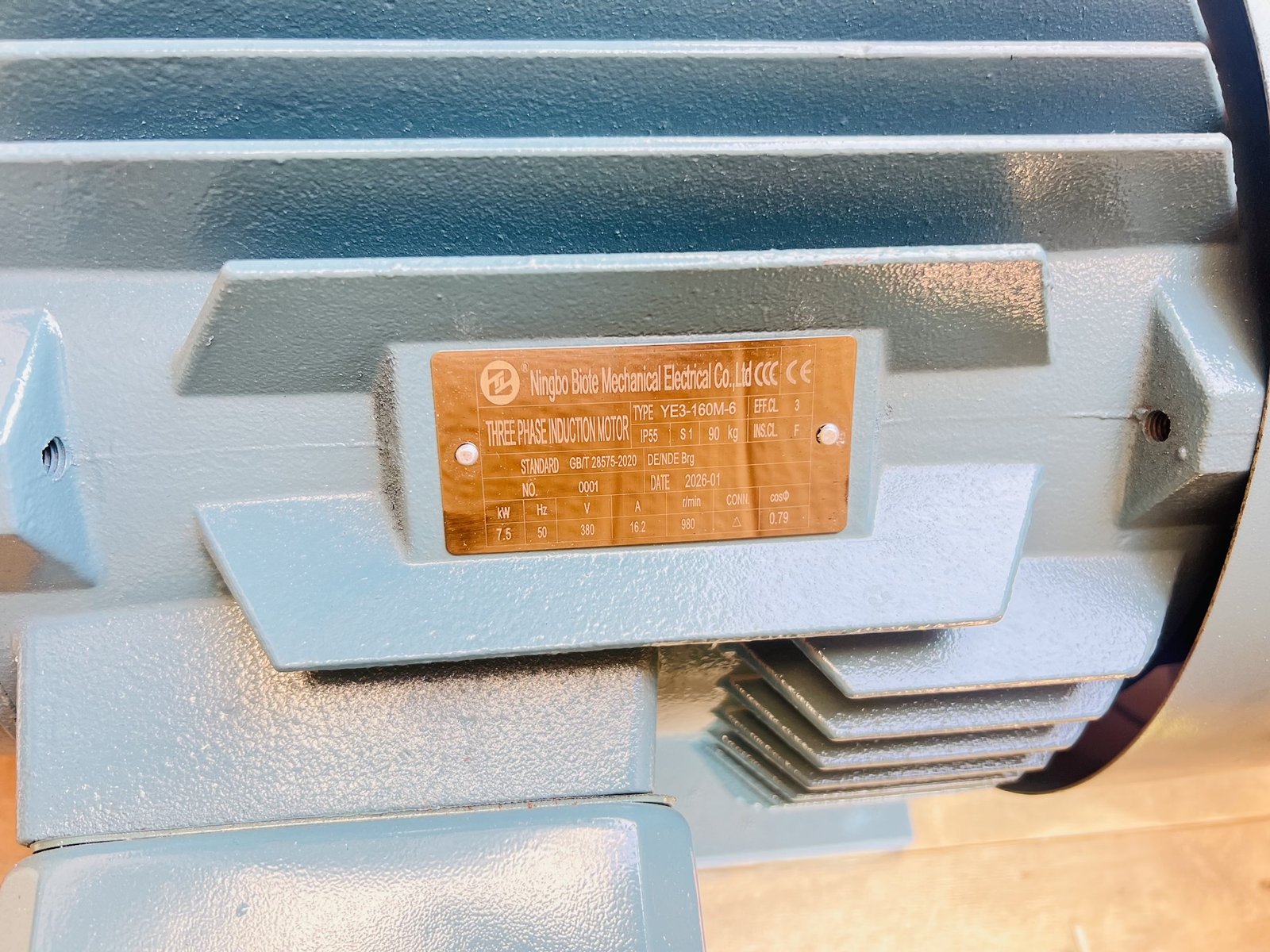

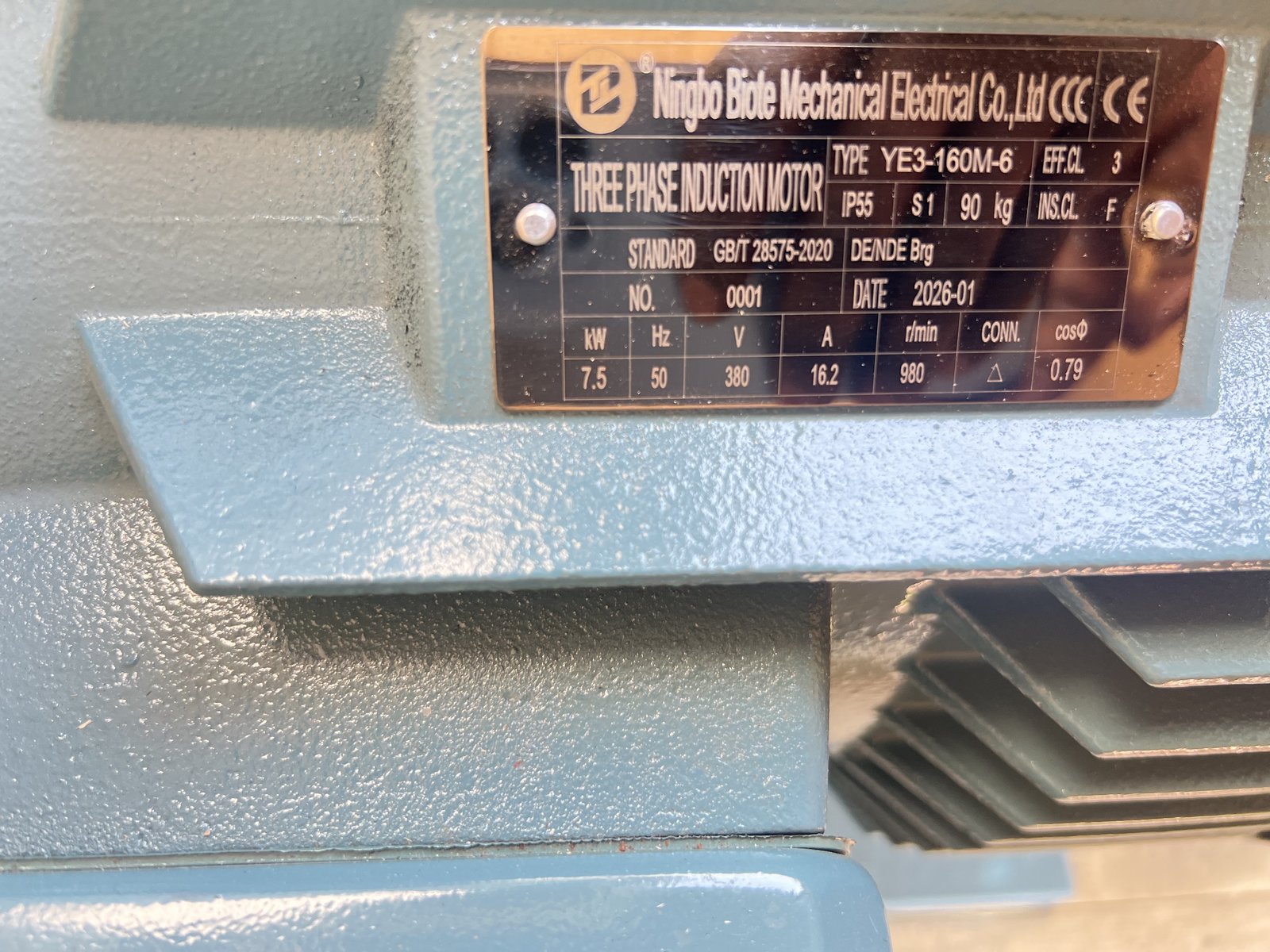

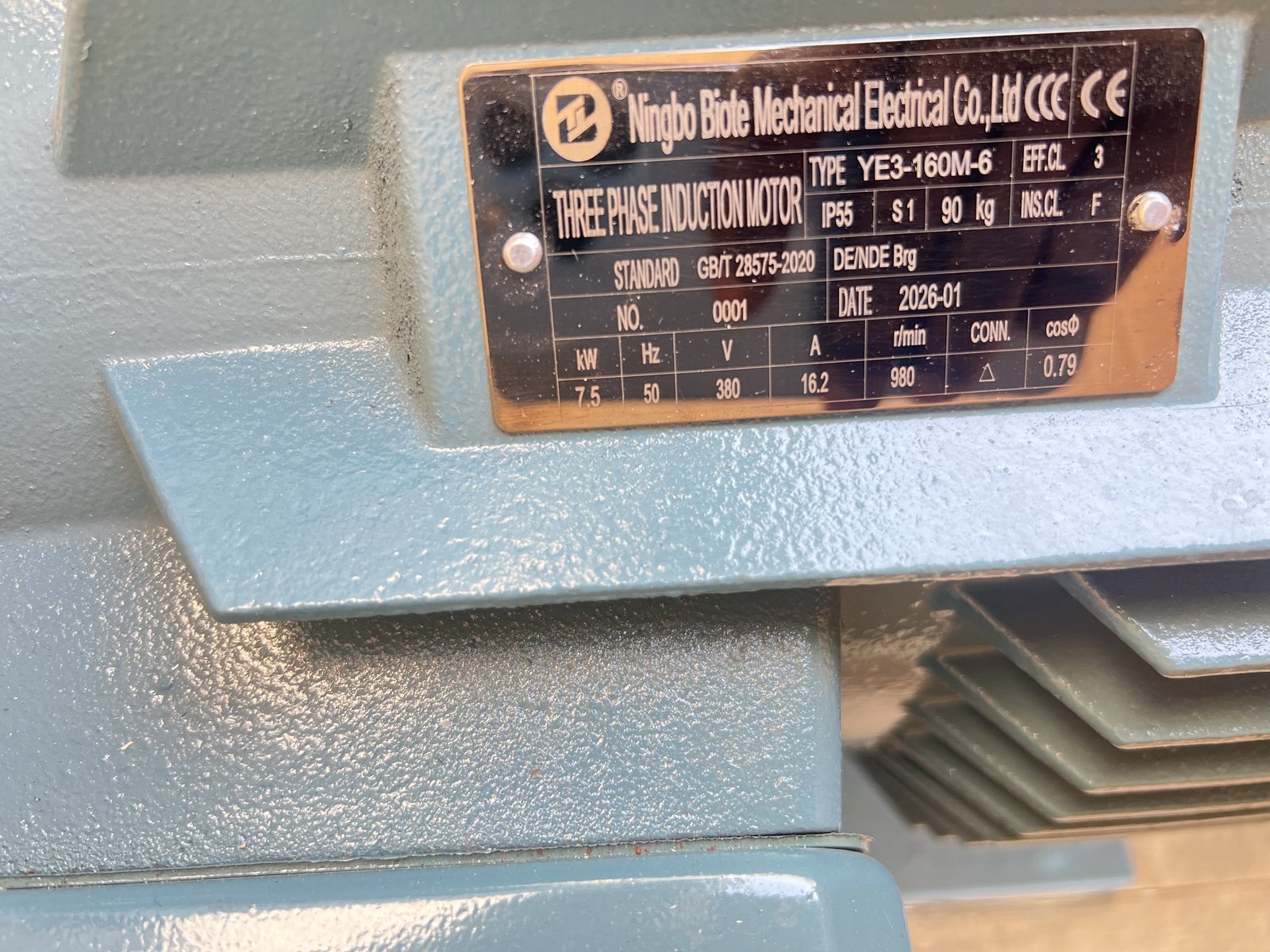

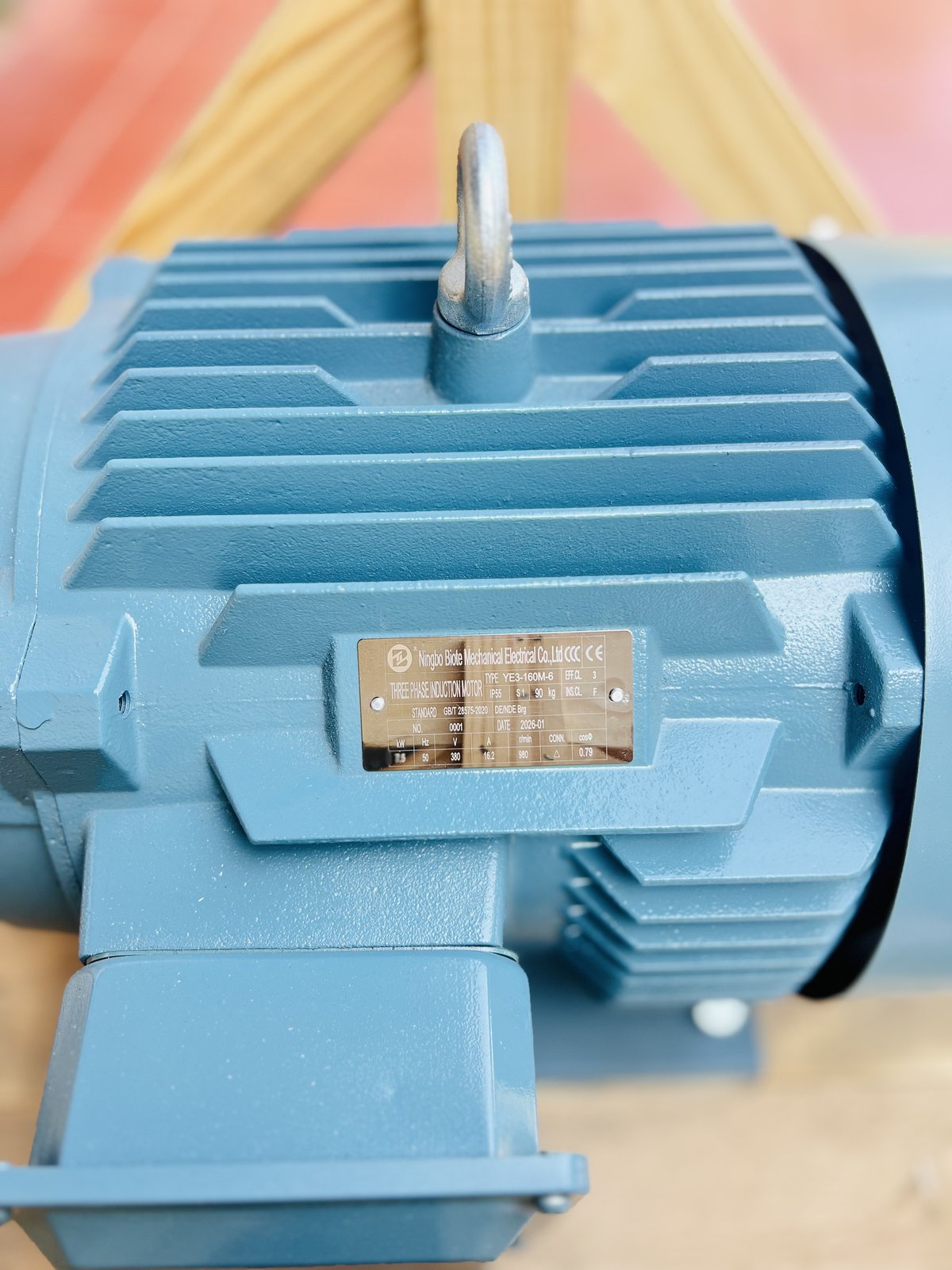

Nameplate Data
Ningbo Biote Mechanical Electrical Co., Ltd.
THREE PHASE INDUCTION MOTOR
Type: YE3-160M-6
Electrical Performance
| Power | 7.5 kW |
| Voltage | 380 V |
| Current | 16.2 A |
| Frequency | 50 Hz |
| Speed | 980 r/min |
| Connection | Δ (Delta) |
| Power Factor cosφ | 0.79 |
Mechanical & General
Efficiency Class
IE3 (Class 3)
Protection
IP55
Duty
S1 (Continuous)
Insulation
Class F
Weight
90 kg
Standard
GB/T 28575-2020
Certification
CCC & CE
Frame Size
160M
Other ratings available on request
Enquire →

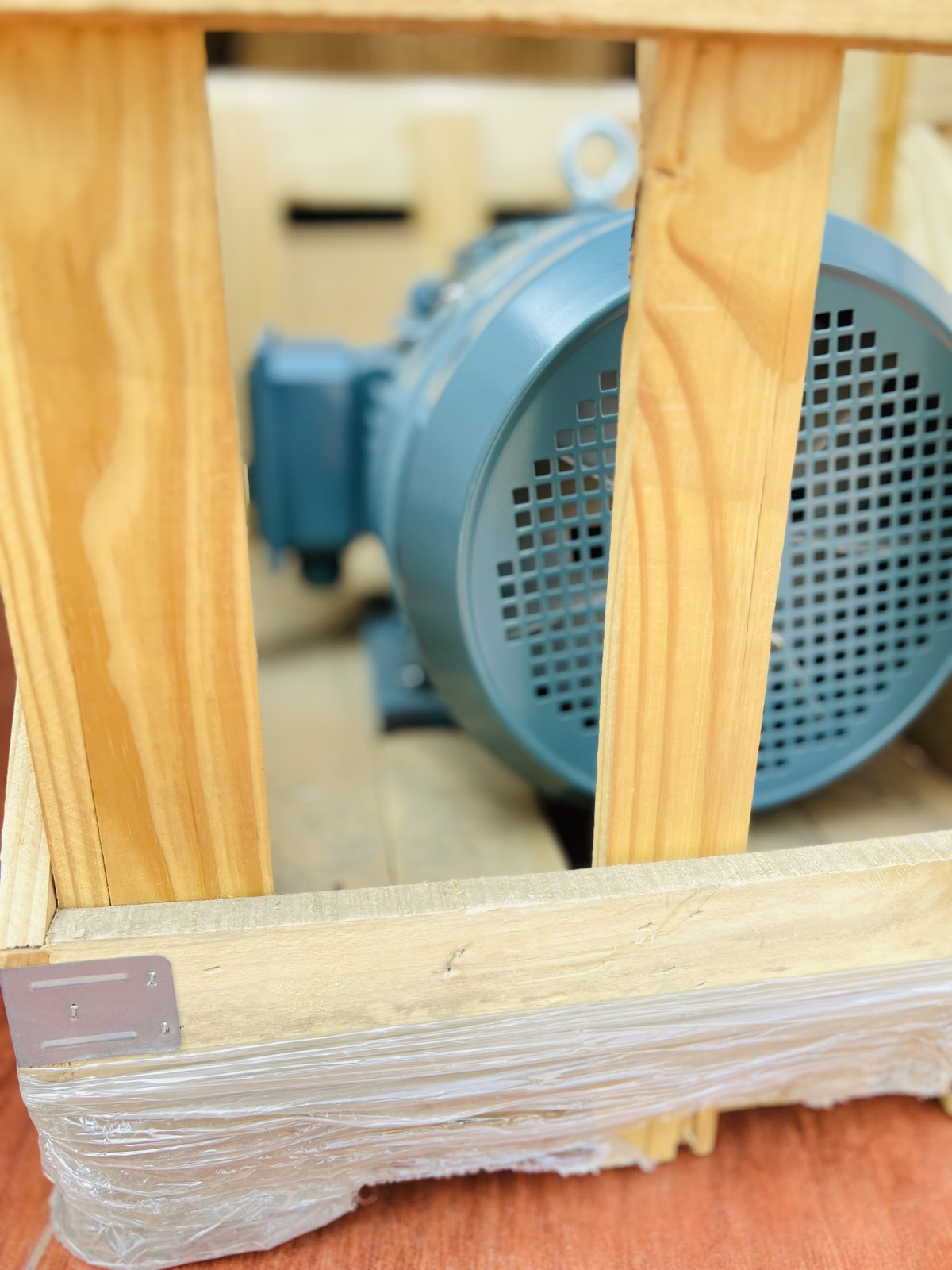

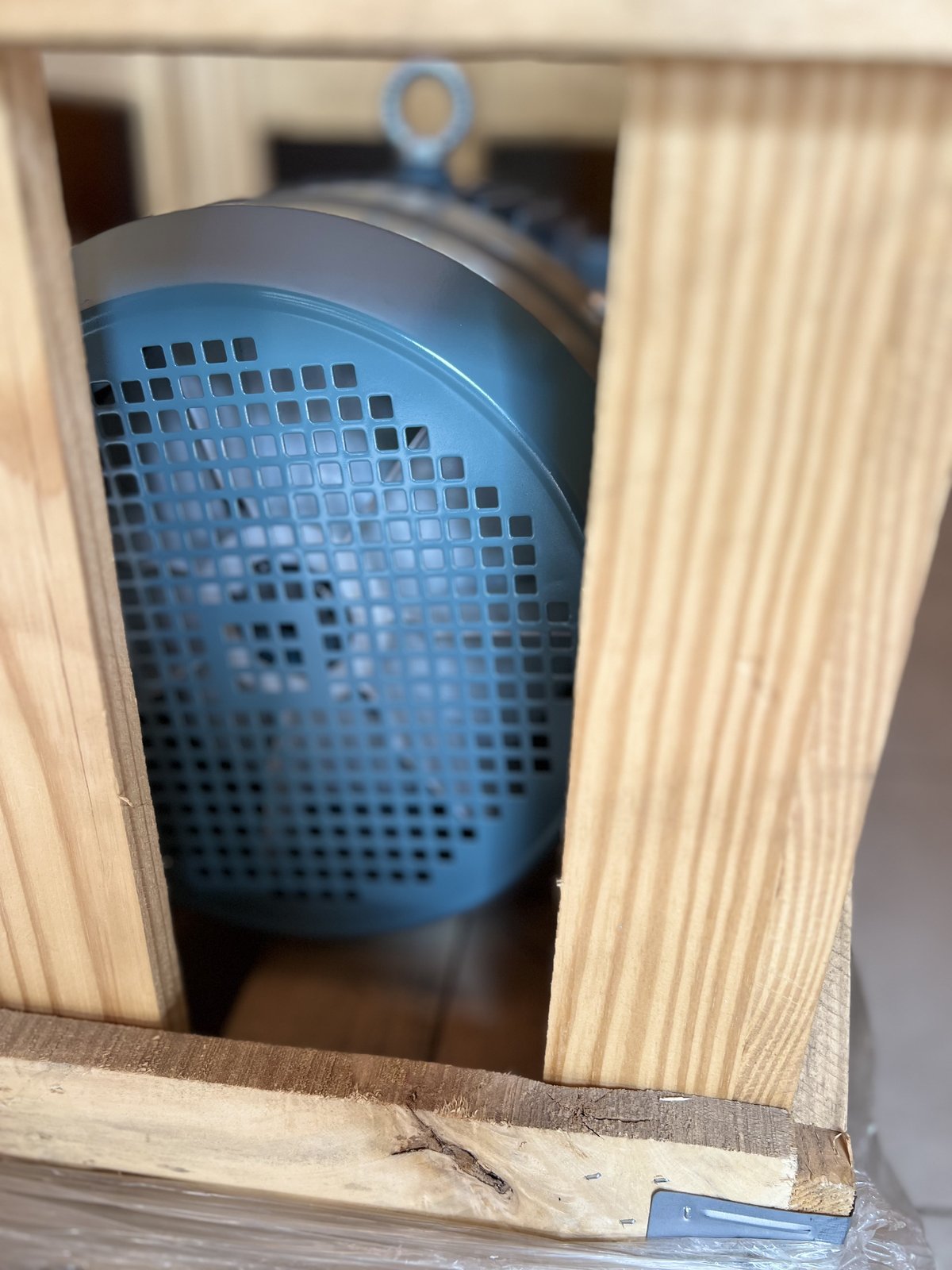

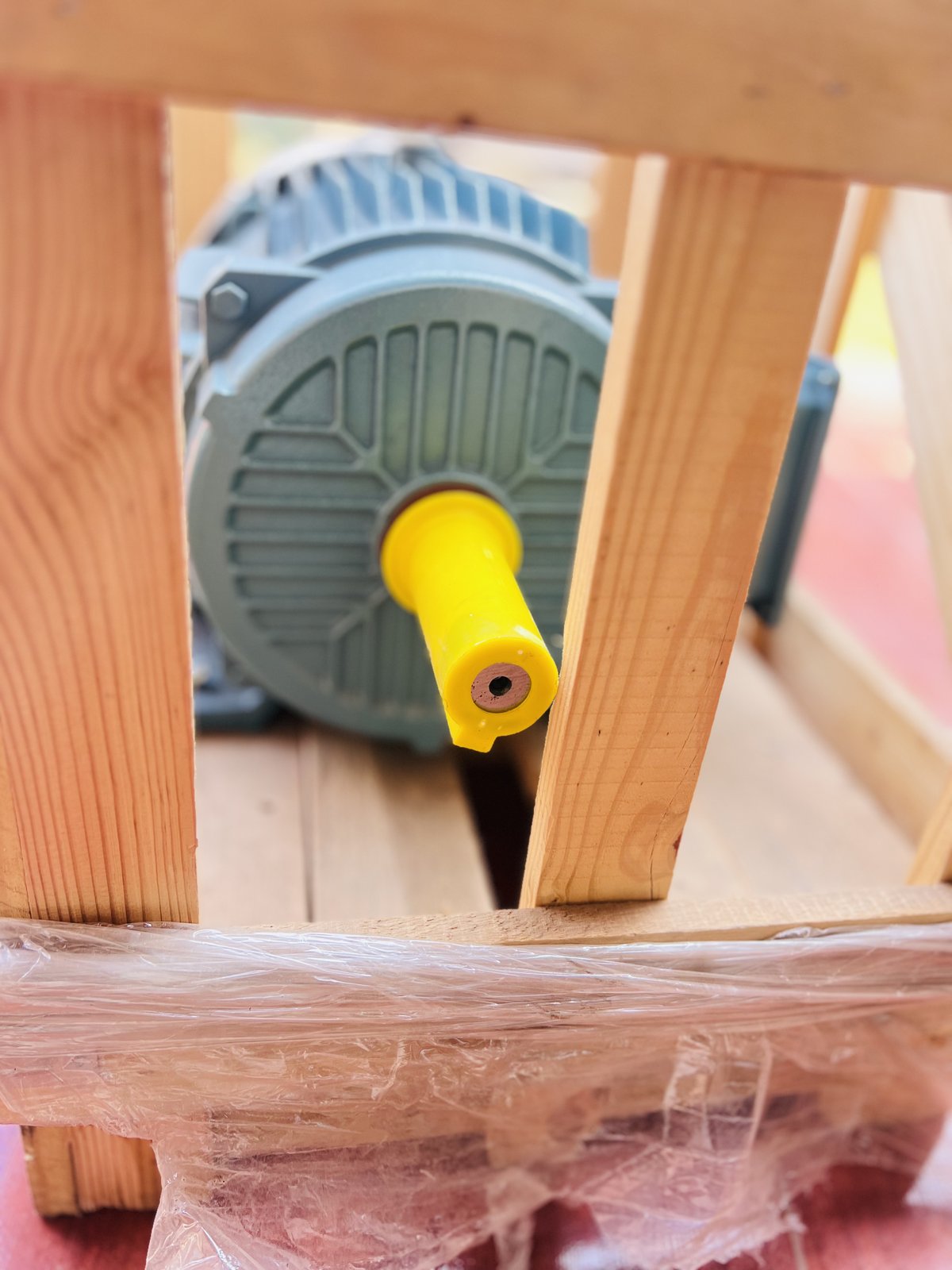

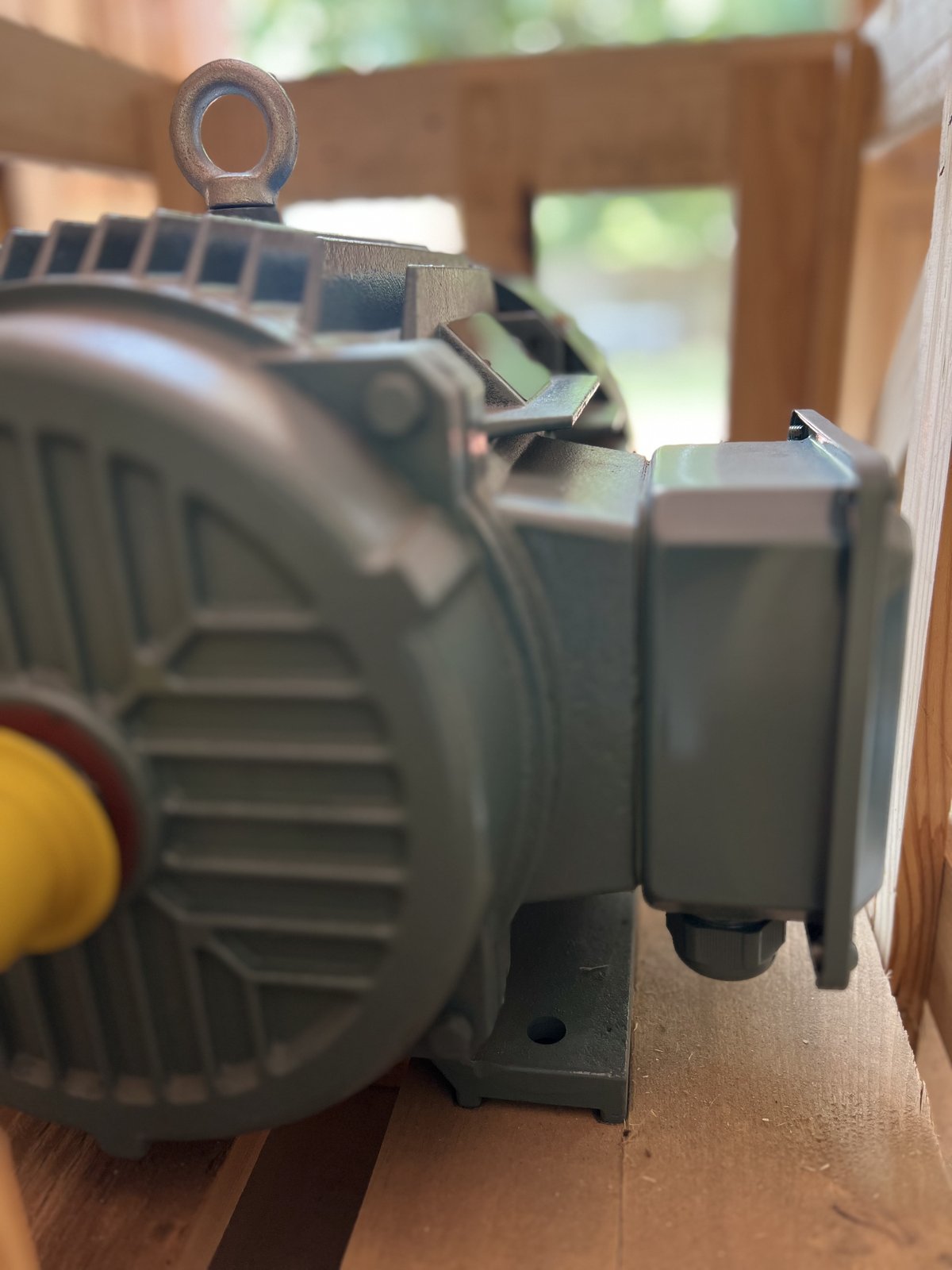

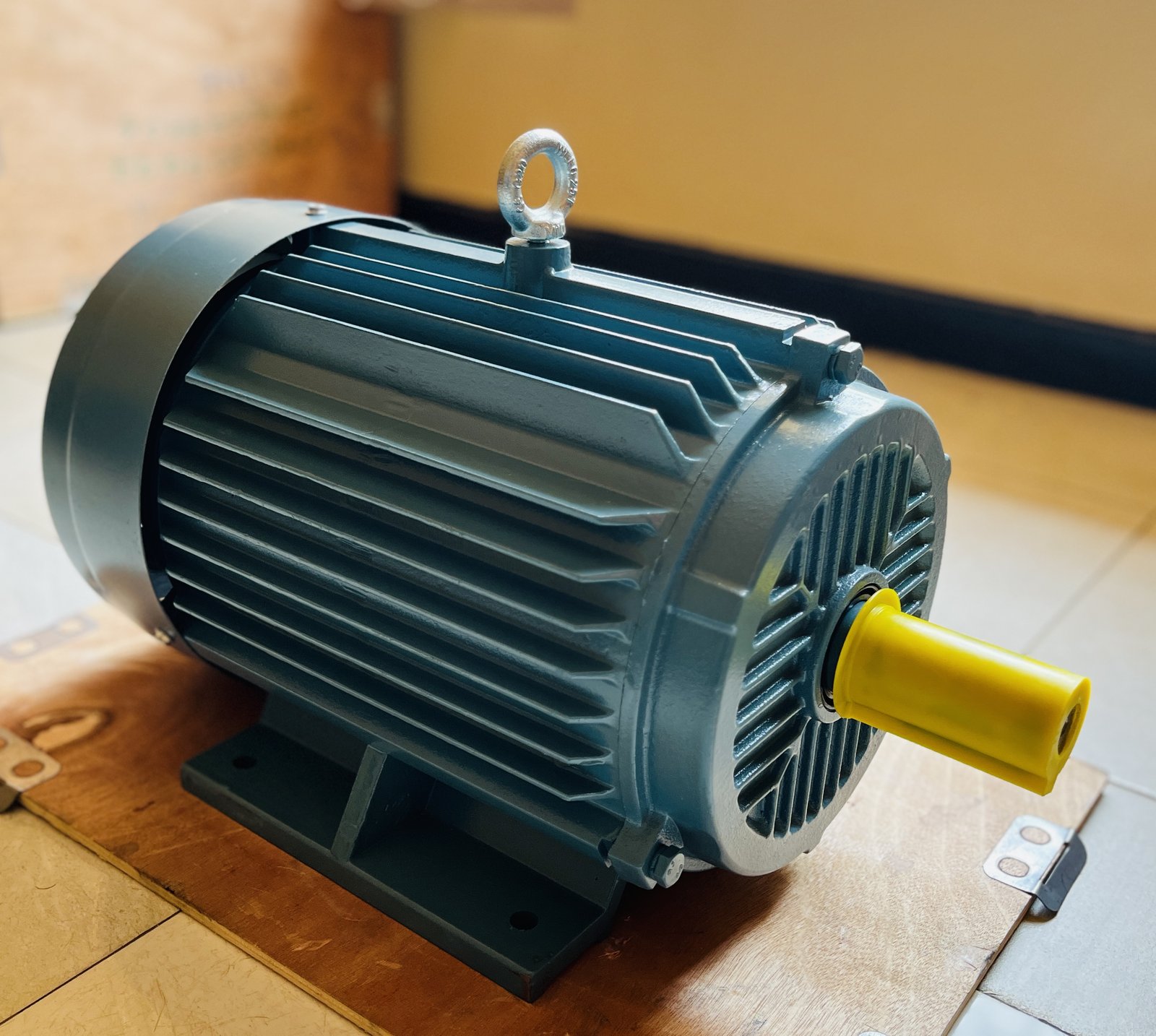

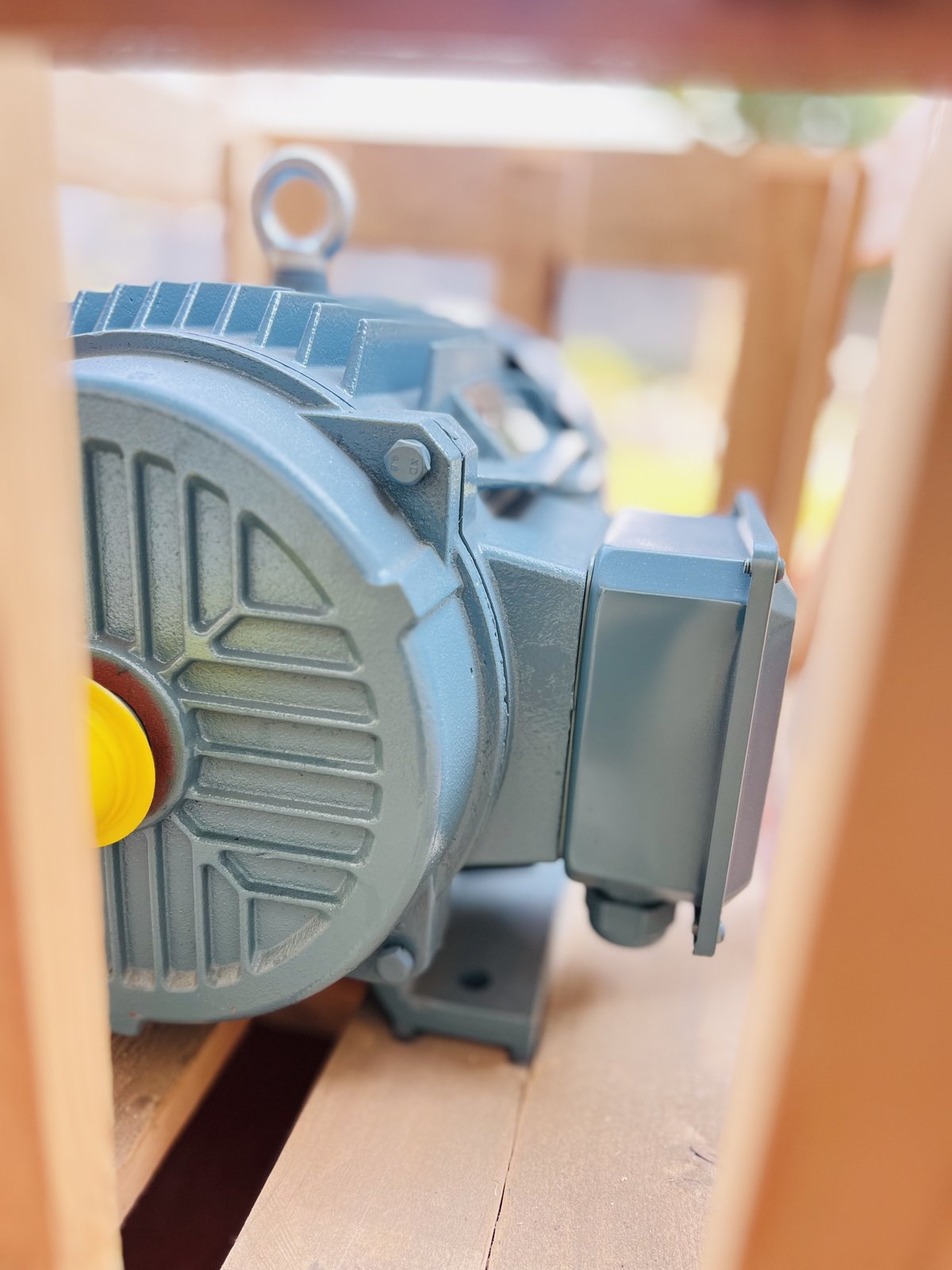

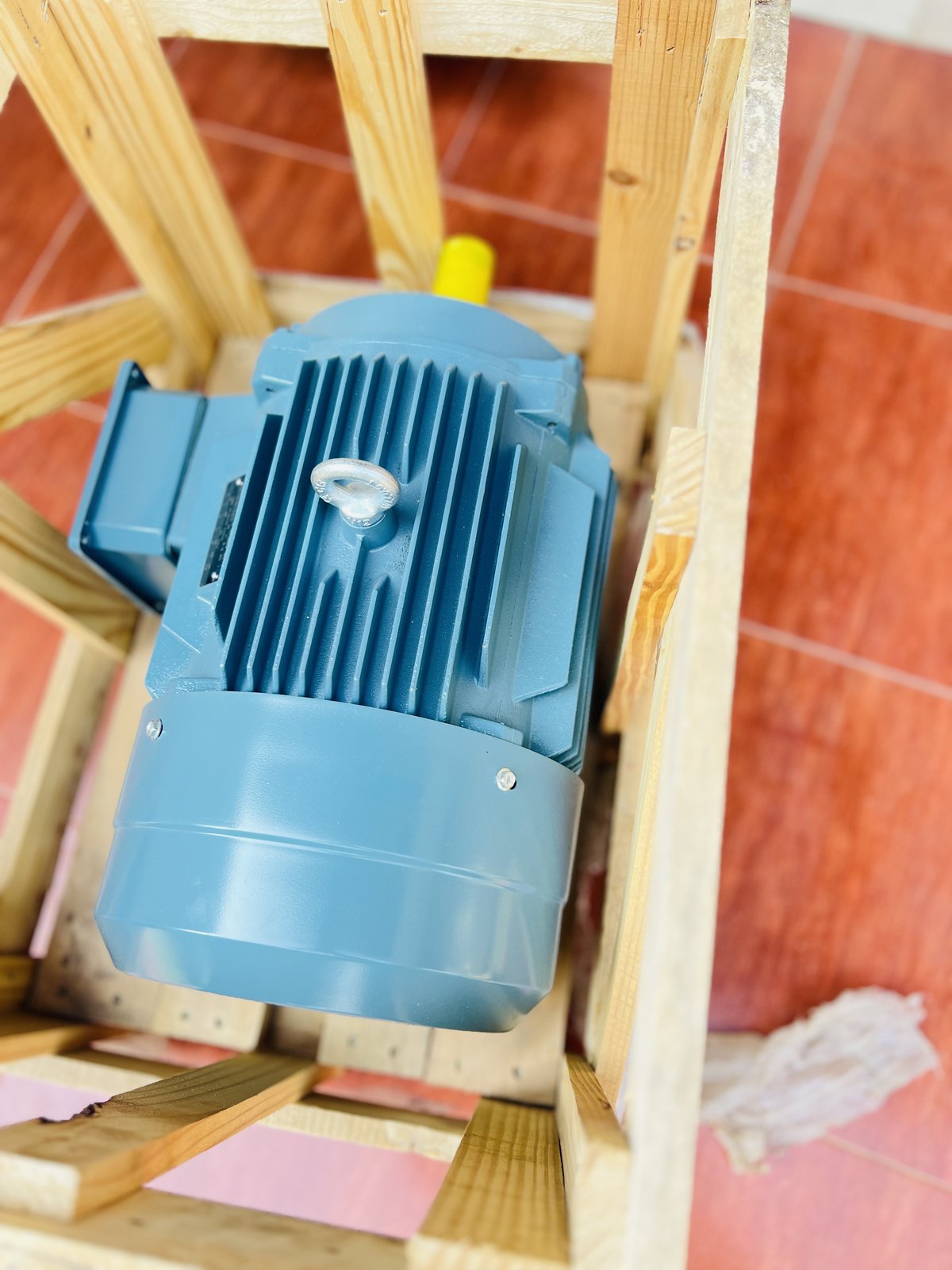

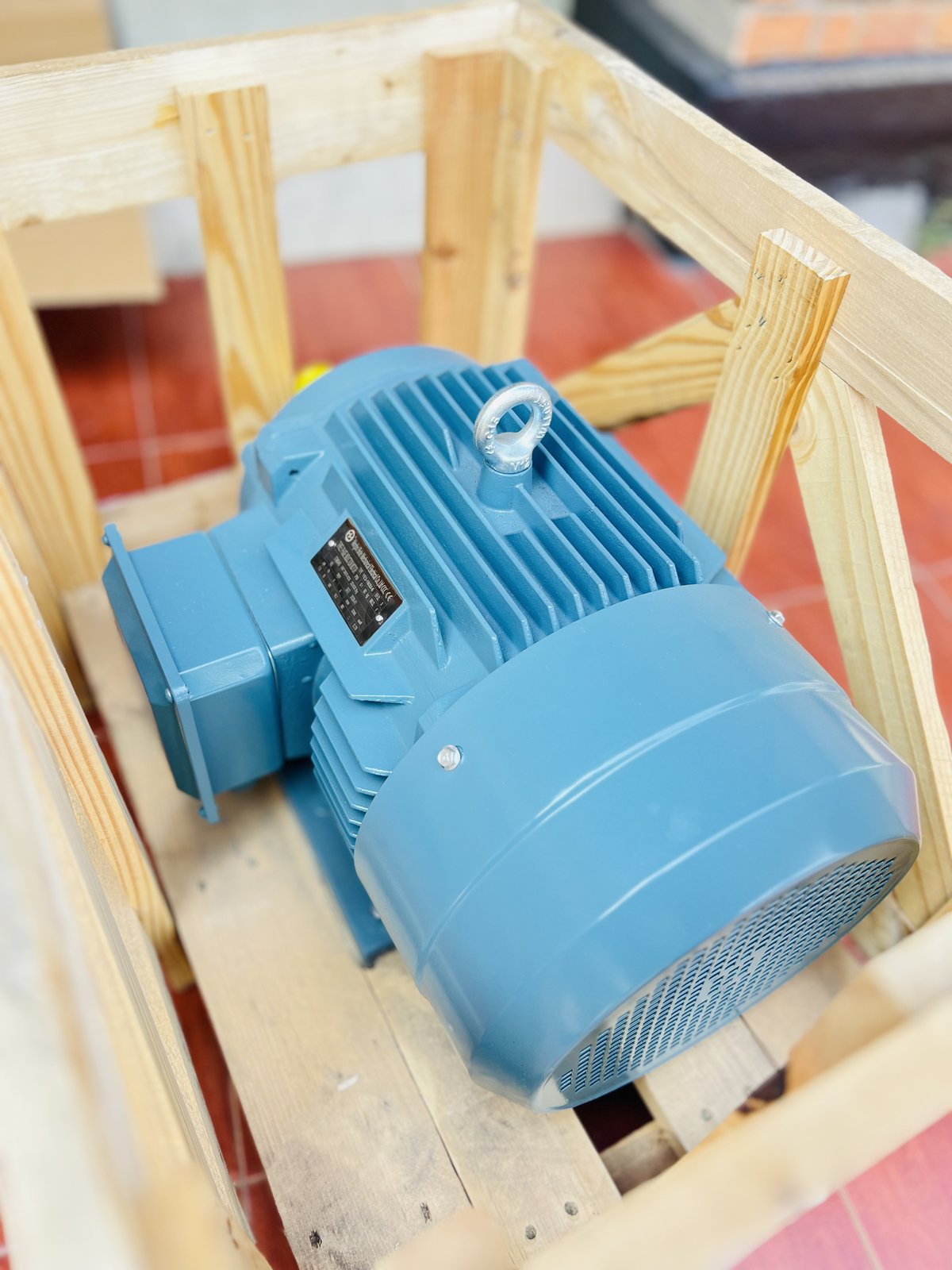

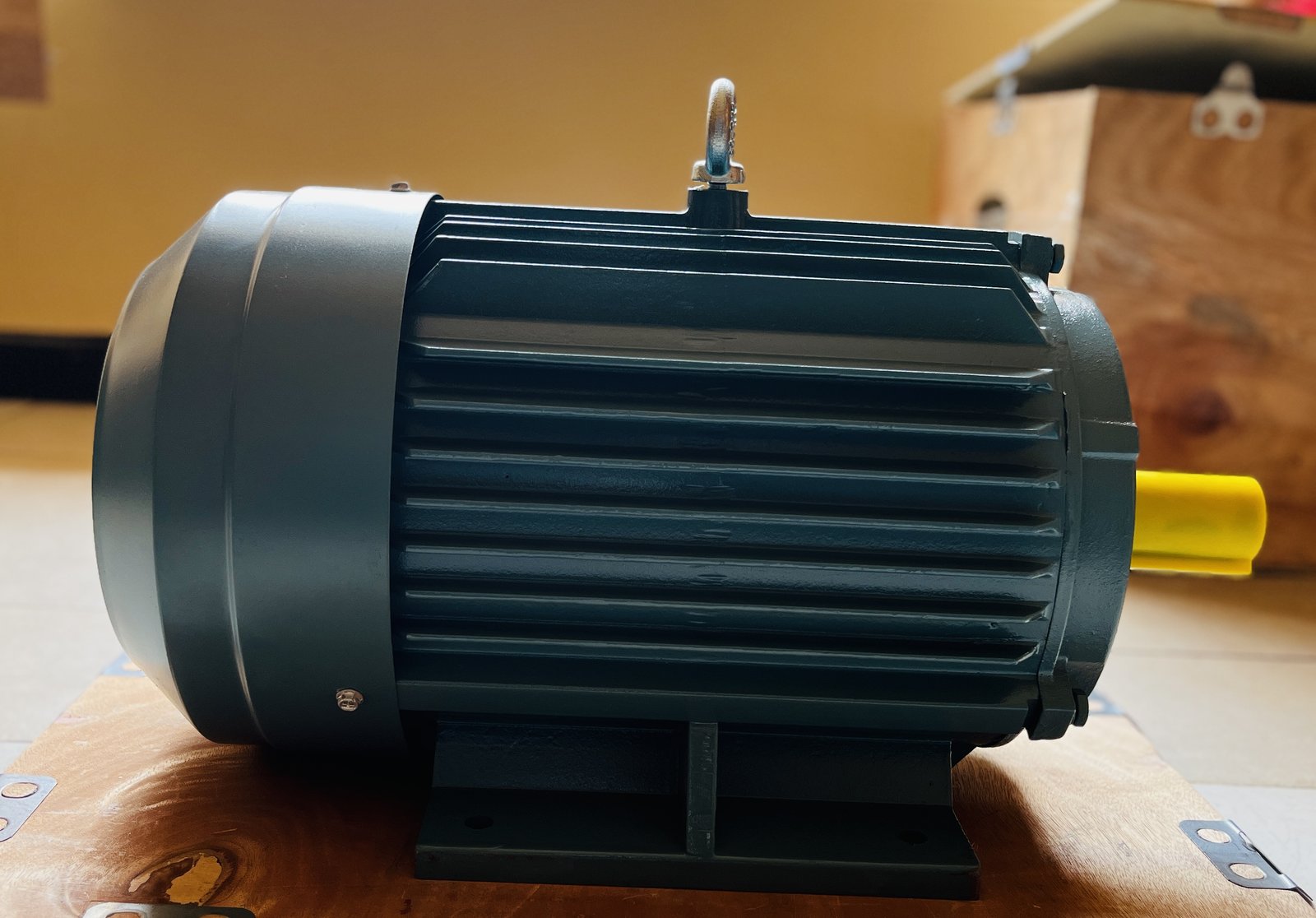

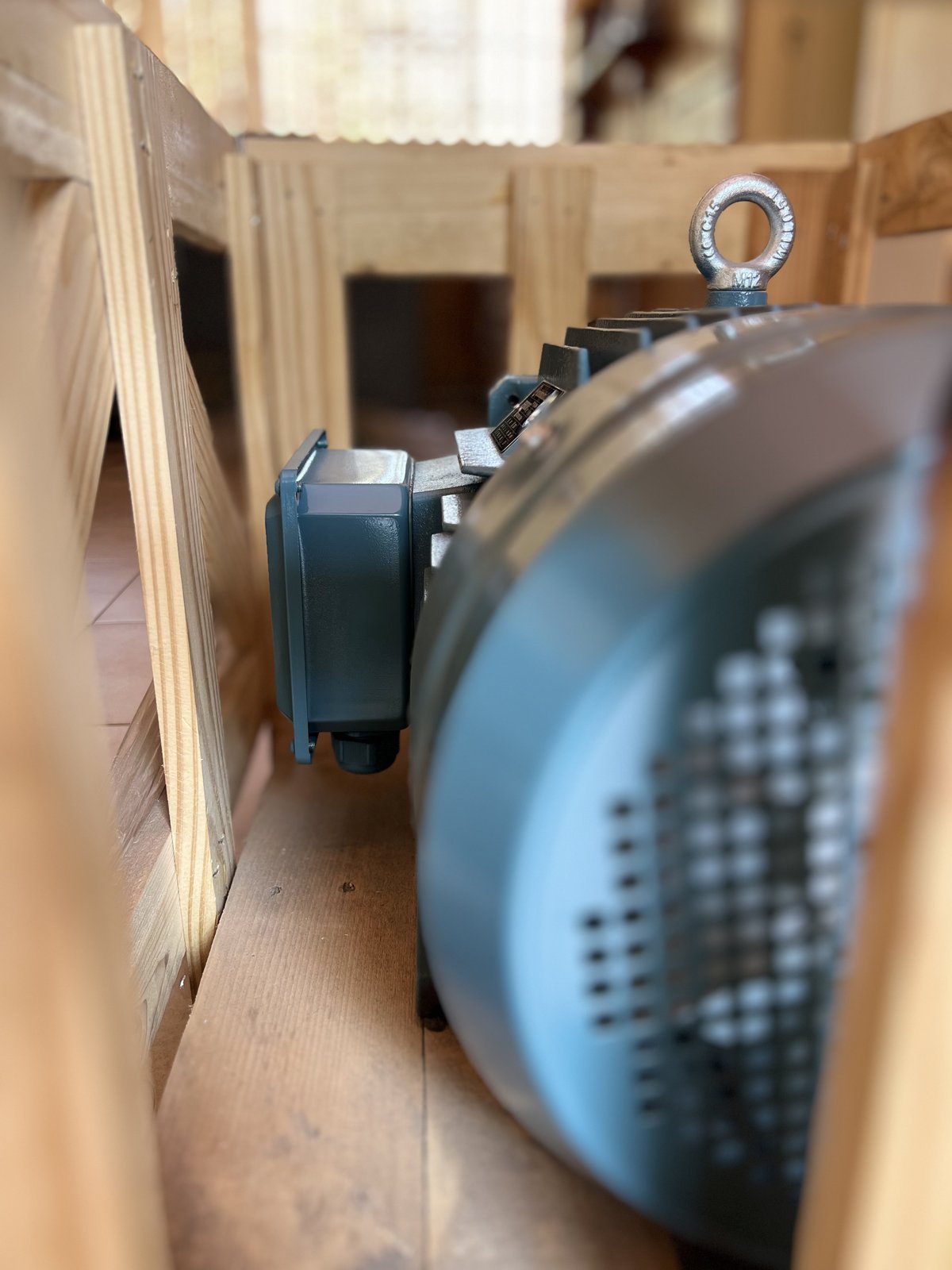

Product Photos
See the Motors Up Close
Click any photo to view it full-size. Use arrow keys or swipe to navigate.
Why Choose YE3 Series
Built for Heavy-Duty Performance
IP55 Weatherproof
Dust-tight and protected against water jets from any direction. Suitable for outdoor installations, pump stations, and dusty industrial environments.
Class F Insulation
Rated for continuous operation at up to 155 °C winding temperature — providing thermal margin above standard Class B ratings for longer motor life.
Continuous S1 Duty
Rated for 24/7 continuous operation at full load — no de-rating needed for always-on applications such as pumps, compressors, and conveyors.
Robust Cast Iron Frame
Heavy-duty grey cast iron housing with precision-machined feet for vibration-free mounting. Withstands mechanical shock and harsh site conditions.
CCC & CE Certified
Holds China Compulsory Certification (CCC) and European CE marking — independently verified for electrical safety and electromagnetic compatibility.
Applications
Typical Drive Applications
Three-phase induction motors are the workhorse of industry. Here are the most common applications we supply into across Zambia.
Centrifugal Pumps
Air Compressors
Conveyor Belts
Fan & Blower Drives
Crushers & Mills
HVAC Equipment
Mixer & Agitator
Water Treatment
Need a Motor for Your Site?
We supply the YE3 series and other three-phase motor ranges to organisations across Zambia. Tell us your required kW, speed, frame size, and application — we'll confirm availability and pricing fast.
- Multiple power ratings available (0.75 kW – 355 kW)
- 2-pole, 4-pole, and 6-pole speeds in stock
- B3 foot, B5 flange, and B35 combination mounting
- Nationwide delivery across Zambia
- Technical support and installation advice available
